get_exercises • troopdata

This page provides an overview for the get_exercises() function, the latest addition to the troopdata package. The function returns a customized data frame of exercise-country-year observations drawn from the Multinational Military Exercises (MME) dataset (D’Orazio and Galambos 2021), reshaped into long format so each row represents a single participating country in a single year of a single exercise.

First things first—let’s load the troopdata package along with a few helpers we’ll use for plotting and wrangling.

library(troopdata)
library(dplyr)
library(tidyverse)
library(ggplot2)
library(viridis)

The underlying data object is mme_long, and get_exercises() exposes a series of filter arguments that let users subset the data by participating country, year, exercise duration, geographic location, exercise name, the domain of the exercise (e.g., air, land, sea), the mission focus (warfighting, humanitarian, peacekeeping), and the number of participating countries.

Basic usage

Called with no arguments, get_exercises() returns the full long-format exercise-country-year dataset across the entire temporal coverage of the underlying MME data.


example <- get_exercises()

head(example)
#> # A tibble: 6 × 30
#>   MMEID  Ex_Name Series_Name gwcode country  year Location   lat   lon StartDate
#>   <chr>  <chr>   <chr>        <dbl> <chr>   <dbl> <chr>    <dbl> <dbl> <chr>
#> 1 mme100 Deterr… Deterrent …     20 Canada   1980 central…  34.6  18.0 5/16/80
#> 2 mme100 Deterr… Deterrent …    260 Federa…  1980 central…  34.6  18.0 5/16/80
#> 3 mme100 Deterr… Deterrent …    325 Italy    1980 central…  34.6  18.0 5/16/80
#> 4 mme100 Deterr… Deterrent …    210 Nether…  1980 central…  34.6  18.0 5/16/80
#> 5 mme100 Deterr… Deterrent …    640 Turkey   1980 central…  34.6  18.0 5/16/80
#> 6 mme100 Deterr… Deterrent …    200 United…  1980 central…  34.6  18.0 5/16/80
#> # ℹ 20 more variables: s.year <dbl>, s.month <dbl>, s.day <chr>, EndDate <chr>,
#> #   e.year <dbl>, e.month <dbl>, e.day <chr>, CPX <dbl>, Air <dbl>, Land <dbl>,
#> #   Sea <dbl>, Amphibious <dbl>, Cyber <dbl>, Warfighting <dbl>,
#> #   Peacekeeping <dbl>, Humanitarian <dbl>, FocusDescription <chr>,
#> #   AdditionalParticipantInfo <chr>, participant_count <int>, duration <dbl>

Each row identifies a single participating country in a single year of a single exercise. The MMEID column uniquely identifies each exercise, Ex_Name gives the name of the individual exercise, and Series_Name identifies the broader series the exercise belongs to (e.g., “Cobra Gold 23” is part of the “Cobra Gold” series).

Filtering by country

The country argument accepts either a numeric vector of Gleditsch and Ward (G&W) country codes or a character vector of country names. Numeric input is matched exactly against the gwcode column; character input is matched against the country column using a case-insensitive grepl fuzzy match, so partial names are accepted.

For example, using a numeric vector of G&W codes:


# Pull exercises that include Japan (740) and Australia (900)
example.gw <- get_exercises(country = c(740, 900))

head(example.gw)
#> # A tibble: 6 × 30
#>   MMEID Ex_Name Series_Name gwcode country  year Location    lat   lon StartDate
#>   <chr> <chr>   <chr>        <dbl> <chr>   <dbl> <chr>     <dbl> <dbl> <chr>
#> 1 mme1… RIMPAC… RIMPAC         900 Austra…  1992 Pacific…  35.0  -116. 6/19/92
#> 2 mme1… RIMPAC… RIMPAC         740 Japan    1992 Pacific…  35.0  -116. 6/19/92
#> 3 mme1… Major … Major Adex     900 Austra…  1992 malaysi…   4.21  102. 9/22/92
#> 4 mme1… Starfi… Starfish       900 Austra…  1992 South C…   2.79  104. 9/7/92
#> 5 mme1… Aces N… NA             900 Austra…  1992 Austral… -12.4   131. 10/19/92
#> 6 mme1… Suman … Suman Warr…    900 Austra…  1992 Burnham… -43.6   172. 10/19/92
#> # ℹ 20 more variables: s.year <dbl>, s.month <dbl>, s.day <chr>, EndDate <chr>,
#> #   e.year <dbl>, e.month <dbl>, e.day <chr>, CPX <dbl>, Air <dbl>, Land <dbl>,
#> #   Sea <dbl>, Amphibious <dbl>, Cyber <dbl>, Warfighting <dbl>,
#> #   Peacekeeping <dbl>, Humanitarian <dbl>, FocusDescription <chr>,
#> #   AdditionalParticipantInfo <chr>, participant_count <int>, duration <dbl>

Or a character vector. Because the country filter is a fuzzy match, the string "korea" will return participation rows for both North and South Korea:


example.korea <- get_exercises(country = "korea")

unique(example.korea$country)
#> [1] "South Korea" "North Korea"

This is intentional — users who need to distinguish between similarly-named countries should either pass the exact G&W code or post-filter the returned data frame.

Filtering by year

The startyear and endyear arguments subset the data to a specific temporal range. If a year falls outside the available range of the underlying MME data, the function issues a warning and clamps the value to the nearest available year rather than failing.


example.years <- get_exercises(country = "korea",
                               startyear = 2000,
                               endyear = 2010)

head(example.years)
#> # A tibble: 6 × 30
#>   MMEID  Ex_Name Series_Name gwcode country  year Location   lat   lon StartDate
#>   <chr>  <chr>   <chr>        <dbl> <chr>   <dbl> <chr>    <dbl> <dbl> <chr>
#> 1 mme18… -9      NA             732 South …  2000 Kyonggi…  37.4  128. 2000-02-…
#> 2 mme18… -9      NA             732 South …  2000 Sea of …  38.8  135  2000-04-…
#> 3 mme18… RSOI 2… RSOI           732 South …  2000 South K…  35.9  128. 2000-04-…
#> 4 mme19… Ulchi … UFL            732 South …  2000 South K…  35.9  128. 8/21/00
#> 5 mme19… Foal E… FE             732 South …  2000 South K…  35.9  128. 10/25/00
#> 6 mme19… Pacifi… Pacific Re…    732 South …  2000 South C…  15.5  114. 10/2/00
#> # ℹ 20 more variables: s.year <dbl>, s.month <dbl>, s.day <chr>, EndDate <chr>,
#> #   e.year <dbl>, e.month <dbl>, e.day <chr>, CPX <dbl>, Air <dbl>, Land <dbl>,
#> #   Sea <dbl>, Amphibious <dbl>, Cyber <dbl>, Warfighting <dbl>,
#> #   Peacekeeping <dbl>, Humanitarian <dbl>, FocusDescription <chr>,
#> #   AdditionalParticipantInfo <chr>, participant_count <int>, duration <dbl>

Filtering by exercise name

The exercise_name argument matches against both the Ex_Name and Series_Name columns using a case-insensitive grepl fuzzy match. This lets users target either an individual exercise (e.g., "Cobra Gold 23") or the entire exercise series ("cobra gold").


cobra_gold <- get_exercises(exercise_name = "cobra gold")

head(cobra_gold)
#> # A tibble: 6 × 30
#>   MMEID  Ex_Name Series_Name gwcode country  year Location   lat   lon StartDate
#>   <chr>  <chr>   <chr>        <dbl> <chr>   <dbl> <chr>    <dbl> <dbl> <chr>
#> 1 mme10… Cobra … Cobra Gold     800 Thaila…  1993 Thailan…  12.7  101. 5/3/93
#> 2 mme10… Cobra … Cobra Gold       2 United…  1993 Thailan…  12.7  101. 5/3/93
#> 3 mme11… Cobra … Cobra Gold     800 Thaila…  1994 Thailan…  13.4  101. 5/9/94
#> 4 mme11… Cobra … Cobra Gold       2 United…  1994 Thailan…  13.4  101. 5/9/94
#> 5 mme12… Cobra … Cobra Gold     800 Thaila…  1995 Thailan…  15.0  102. 5/1/95
#> 6 mme12… Cobra … Cobra Gold       2 United…  1995 Thailan…  15.0  102. 5/1/95
#> # ℹ 20 more variables: s.year <dbl>, s.month <dbl>, s.day <chr>, EndDate <chr>,
#> #   e.year <dbl>, e.month <dbl>, e.day <chr>, CPX <dbl>, Air <dbl>, Land <dbl>,
#> #   Sea <dbl>, Amphibious <dbl>, Cyber <dbl>, Warfighting <dbl>,
#> #   Peacekeeping <dbl>, Humanitarian <dbl>, FocusDescription <chr>,
#> #   AdditionalParticipantInfo <chr>, participant_count <int>, duration <dbl>

Multiple patterns can be supplied as a vector and are combined with logical OR:


multi.ex <- get_exercises(exercise_name = c("cobra gold", "balikatan"))

unique(multi.ex$Series_Name)
#> [1] "Balikatan"  "Cobra Gold"

Filtering by location

The location argument applies the same fuzzy-matching logic to the free-text Location column. This is useful for pulling out exercises held in a particular country, sub-region, or named training area.


thailand.ex <- get_exercises(location = "thailand")

head(thailand.ex)
#> # A tibble: 6 × 30
#>   MMEID  Ex_Name Series_Name gwcode country  year Location   lat   lon StartDate
#>   <chr>  <chr>   <chr>        <dbl> <chr>   <dbl> <chr>    <dbl> <dbl> <chr>
#> 1 mme10… Cobra … Cobra Gold     800 Thaila…  1993 Thailan…  12.7  101. 5/3/93
#> 2 mme10… Cobra … Cobra Gold       2 United…  1993 Thailan…  12.7  101. 5/3/93
#> 3 mme11… -9      NA             830 Singap…  1993 in kora…  15.0  102. 1993-12-…
#> 4 mme11… -9      NA             800 Thaila…  1993 in kora…  15.0  102. 1993-12-…
#> 5 mme11… Cobra … Cobra Gold     800 Thaila…  1994 Thailan…  13.4  101. 5/9/94
#> 6 mme11… Cobra … Cobra Gold       2 United…  1994 Thailan…  13.4  101. 5/9/94
#> # ℹ 20 more variables: s.year <dbl>, s.month <dbl>, s.day <chr>, EndDate <chr>,
#> #   e.year <dbl>, e.month <dbl>, e.day <chr>, CPX <dbl>, Air <dbl>, Land <dbl>,
#> #   Sea <dbl>, Amphibious <dbl>, Cyber <dbl>, Warfighting <dbl>,
#> #   Peacekeeping <dbl>, Humanitarian <dbl>, FocusDescription <chr>,
#> #   AdditionalParticipantInfo <chr>, participant_count <int>, duration <dbl>

Filtering by duration

The MME data records start and end dates for each exercise. get_exercises() computes a duration column (in days) from these dates, and the min_duration and max_duration arguments filter on that value. Rows with unparseable dates (e.g., source values like "1980-01-xx") yield NA durations and are excluded only when a duration filter is supplied.


# Pull exercises lasting at least a week
long.ex <- get_exercises(min_duration = 7)

# Pull short exercises (one day or less)
short.ex <- get_exercises(max_duration = 1)

Filtering by domain

The domain argument subsets exercises by the warfighting environment. The MME data flags each exercise with one or more binary indicators for Air, Land, Sea, Amphibious, and Cyber. Pass any combination of these (case-insensitive) to domain; an exercise is returned if it is flagged for any of the supplied domains (logical OR).


# Pull all naval and amphibious exercises
sea.ex <- get_exercises(domain = c("sea", "amphibious"))

head(sea.ex)
#> # A tibble: 6 × 30
#>   MMEID  Ex_Name Series_Name gwcode country  year Location   lat   lon StartDate
#>   <chr>  <chr>   <chr>        <dbl> <chr>   <dbl> <chr>    <dbl> <dbl> <chr>
#> 1 mme100 Deterr… Deterrent …     20 Canada   1980 central…  34.6  18.0 5/16/80
#> 2 mme100 Deterr… Deterrent …    260 Federa…  1980 central…  34.6  18.0 5/16/80
#> 3 mme100 Deterr… Deterrent …    325 Italy    1980 central…  34.6  18.0 5/16/80
#> 4 mme100 Deterr… Deterrent …    210 Nether…  1980 central…  34.6  18.0 5/16/80
#> 5 mme100 Deterr… Deterrent …    640 Turkey   1980 central…  34.6  18.0 5/16/80
#> 6 mme100 Deterr… Deterrent …    200 United…  1980 central…  34.6  18.0 5/16/80
#> # ℹ 20 more variables: s.year <dbl>, s.month <dbl>, s.day <chr>, EndDate <chr>,
#> #   e.year <dbl>, e.month <dbl>, e.day <chr>, CPX <dbl>, Air <dbl>, Land <dbl>,
#> #   Sea <dbl>, Amphibious <dbl>, Cyber <dbl>, Warfighting <dbl>,
#> #   Peacekeeping <dbl>, Humanitarian <dbl>, FocusDescription <chr>,
#> #   AdditionalParticipantInfo <chr>, participant_count <int>, duration <dbl>

Unknown domain names are dropped with a warning that lists the accepted values.

Filtering by mission focus

The focus argument works analogously to domain but operates on the mission-focus indicators in the source data: warfighting, humanitarian, and peacekeeping. Multiple values combine with logical OR.


# Pull humanitarian and peacekeeping exercises
hadr.ex <- get_exercises(focus = c("humanitarian", "peacekeeping"))

head(hadr.ex)
#> # A tibble: 6 × 30
#>   MMEID  Ex_Name Series_Name gwcode country  year Location   lat   lon StartDate
#>   <chr>  <chr>   <chr>        <dbl> <chr>   <dbl> <chr>    <dbl> <dbl> <chr>
#> 1 mme10… medfla… Medflag          2 United…  1992 Zambia,… -15.3  28.4 8/24/92
#> 2 mme10… medfla… Medflag        551 Zambia   1992 Zambia,… -15.3  28.4 8/24/92
#> 3 mme10… -9      NA             770 Pakist…  1993 Pakistan  30.4  69.3 2/1/93
#> 4 mme10… -9      NA               2 United…  1993 Pakistan  30.4  69.3 2/1/93
#> 5 mme10… -9      NA             365 Russia   1993 Siberia…  71.6 129.  4/15/93
#> 6 mme10… -9      NA               2 United…  1993 Siberia…  71.6 129.  4/15/93
#> # ℹ 20 more variables: s.year <dbl>, s.month <dbl>, s.day <chr>, EndDate <chr>,
#> #   e.year <dbl>, e.month <dbl>, e.day <chr>, CPX <dbl>, Air <dbl>, Land <dbl>,
#> #   Sea <dbl>, Amphibious <dbl>, Cyber <dbl>, Warfighting <dbl>,
#> #   Peacekeeping <dbl>, Humanitarian <dbl>, FocusDescription <chr>,
#> #   AdditionalParticipantInfo <chr>, participant_count <int>, duration <dbl>

Filtering by number of participants

The mme_long data ships with a precomputed participant_count column that records the total number of participating countries per exercise (the same value is repeated across every row sharing an MMEID). The min_participants and max_participants arguments filter on this column.


# Pull large multilateral exercises (10 or more participating countries)
large.ex <- get_exercises(min_participants = 10)

head(large.ex)
#> # A tibble: 6 × 30
#>   MMEID  Ex_Name Series_Name gwcode country  year Location   lat   lon StartDate
#>   <chr>  <chr>   <chr>        <dbl> <chr>   <dbl> <chr>    <dbl> <dbl> <chr>
#> 1 mme10… Baltop… Baltops        390 Denmark  1993 Baltic …  58.5  19.9 6/8/93
#> 2 mme10… Baltop… Baltops        366 Estonia  1993 Baltic …  58.5  19.9 6/8/93
#> 3 mme10… Baltop… Baltops        375 Finland  1993 Baltic …  58.5  19.9 6/8/93
#> 4 mme10… Baltop… Baltops        260 Germany  1993 Baltic …  58.5  19.9 6/8/93
#> 5 mme10… Baltop… Baltops        367 Latvia   1993 Baltic …  58.5  19.9 6/8/93
#> 6 mme10… Baltop… Baltops        368 Lithua…  1993 Baltic …  58.5  19.9 6/8/93
#> # ℹ 20 more variables: s.year <dbl>, s.month <dbl>, s.day <chr>, EndDate <chr>,
#> #   e.year <dbl>, e.month <dbl>, e.day <chr>, CPX <dbl>, Air <dbl>, Land <dbl>,
#> #   Sea <dbl>, Amphibious <dbl>, Cyber <dbl>, Warfighting <dbl>,
#> #   Peacekeeping <dbl>, Humanitarian <dbl>, FocusDescription <chr>,
#> #   AdditionalParticipantInfo <chr>, participant_count <int>, duration <dbl>

Combining filters

All of the arguments above can be combined freely. The function applies each filter in sequence, so the returned data frame contains only rows that satisfy every supplied condition.


# Large-scale humanitarian exercises in the Pacific between 2005 and 2015
combined.ex <- get_exercises(focus = "humanitarian",
                             location = "philippines|thailand|indonesia",
                             min_participants = 5,
                             startyear = 2005,
                             endyear = 2015)

head(combined.ex)
#> # A tibble: 6 × 30
#>   MMEID  Ex_Name Series_Name gwcode country  year Location   lat   lon StartDate
#>   <chr>  <chr>   <chr>        <dbl> <chr>   <dbl> <chr>    <dbl> <dbl> <chr>
#> 1 mme28… Cobra … Cobra Gold     850 Indone…  2006 Thailan…  12.2 103.  5/15/06
#> 2 mme28… Cobra … Cobra Gold     740 Japan    2006 Thailan…  12.2 103.  5/15/06
#> 3 mme28… Cobra … Cobra Gold     830 Singap…  2006 Thailan…  12.2 103.  5/15/06
#> 4 mme28… Cobra … Cobra Gold     800 Thaila…  2006 Thailan…  12.2 103.  5/15/06
#> 5 mme28… Cobra … Cobra Gold       2 United…  2006 Thailan…  12.2 103.  5/15/06
#> 6 mme32… Cobra … Cobra Gold     850 Indone…  2009 Thailan…  18.8  99.0 2/3/09
#> # ℹ 20 more variables: s.year <dbl>, s.month <dbl>, s.day <chr>, EndDate <chr>,
#> #   e.year <dbl>, e.month <dbl>, e.day <chr>, CPX <dbl>, Air <dbl>, Land <dbl>,
#> #   Sea <dbl>, Amphibious <dbl>, Cyber <dbl>, Warfighting <dbl>,
#> #   Peacekeeping <dbl>, Humanitarian <dbl>, FocusDescription <chr>,
#> #   AdditionalParticipantInfo <chr>, participant_count <int>, duration <dbl>

A quick visualization

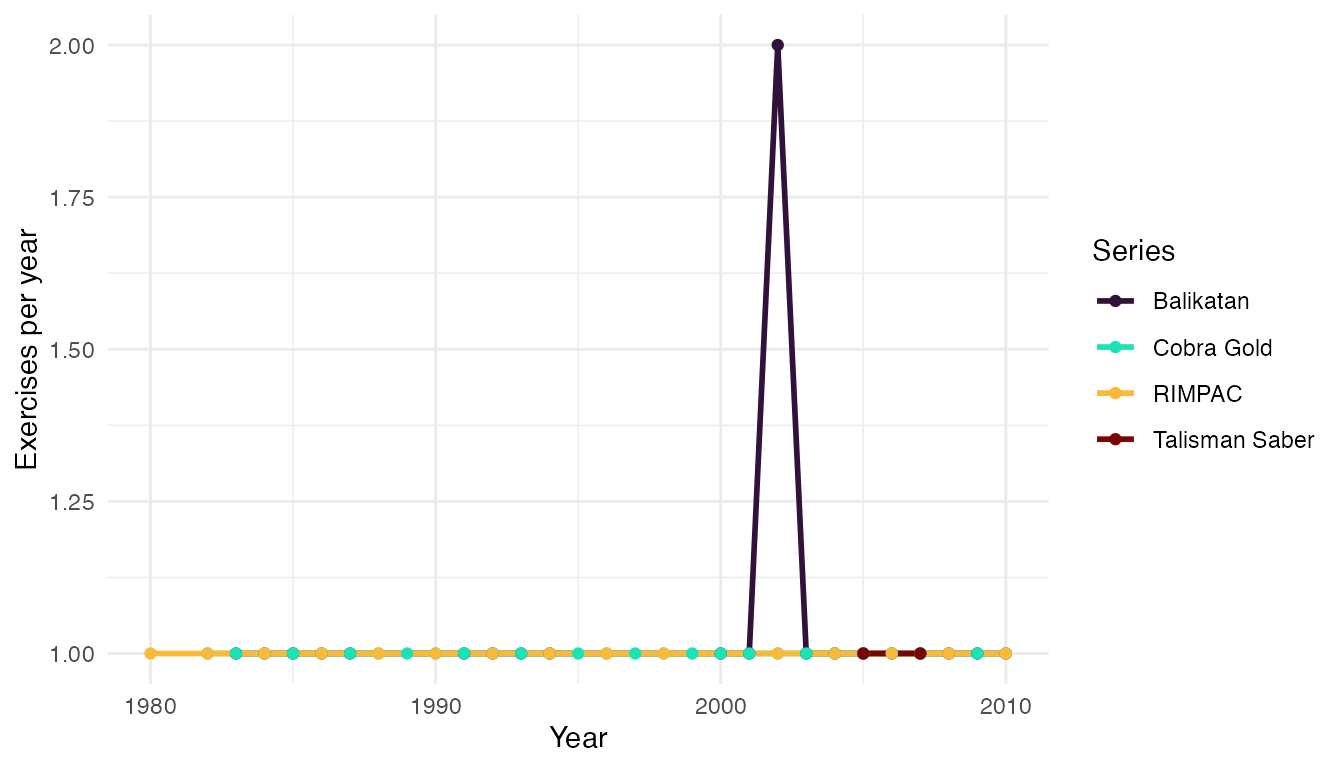

Because the function returns a tidy data frame, it composes naturally with dplyr and ggplot2. Here we count the number of distinct exercises per year for the major Pacific-theater series and plot the trend.


pacific.series <- get_exercises(exercise_name = c("cobra gold",
                                                  "balikatan",
                                                  "talisman sabre",
                                                  "rimpac"))

pacific.trend <- pacific.series %>%
  dplyr::distinct(MMEID, Series_Name, year) %>%
  dplyr::count(Series_Name, year)

ggplot2::ggplot(pacific.trend,
                ggplot2::aes(x = year, y = n, color = Series_Name)) +
  ggplot2::geom_line(linewidth = 1) +
  ggplot2::geom_point() +
  viridis::scale_color_viridis(discrete = TRUE, option = "turbo") +
  ggplot2::labs(x = "Year",
                y = "Exercises per year",
                color = "Series") +
  ggplot2::theme_minimal()

References

D’Orazio, Vito; Galambos, Kevin, 2021, “Multinational Military Exercises, 1980-2010”, https://doi.org/10.7910/DVN/KHFODX, Harvard Dataverse, V1.
